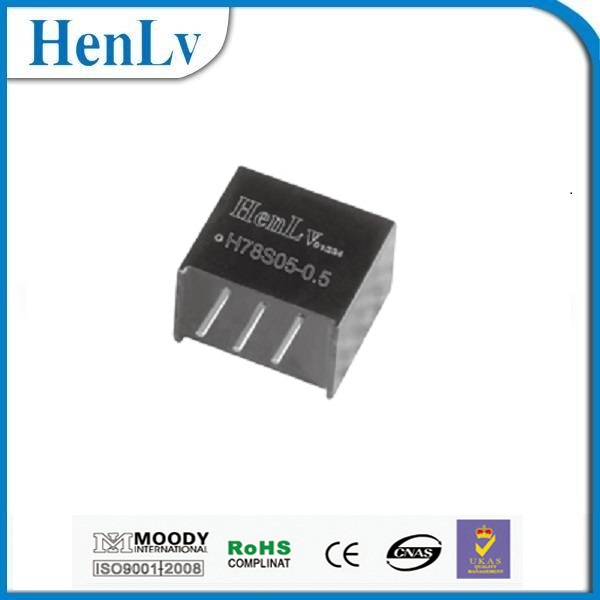

DC DC Converter Switching Regulator Board Mount 12VDC(6 .5-32VDC) to 5VDC total station

FOB Reference Price:Get Latest Price
US $3-5 / Pieces | 20 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
HenLv
Model Number:
H78S05-0.5
Output Power:
2.5W
Output Type:
Single
Size:
11.6*10.0*7.55mm
Weight:
3.6 g
Input Voltage:
12VDC(6.5-32VDC)
Output Voltage:
5VDC
Type:
DC/DC Converters
Output Frequency:
200 KHz
Output Current:
0.5 A Max
Product name:
dc dc converter
Shell:
Plastic Shell
Package:
SIP3
Efficiency:
≥80%
Isolation:
non isolation
Output Form:
Output Voltage Regulated
Operating Temperature:
-40°C ~ +85°C
Storage Temperature:
-40°C ~ +125°C
Color:
Black
Supply Ability
Supply Ability:
200000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Color Box, Carton
Port
Ningbo
Product Overviews

Wide Voltage Input, non-isolation, regulated output DC DC Converter

Output Characteristics:

  1. Output voltage accuracy: 100% load efficiency, input voltage range ±2%~±3%
  2. Linearity control: input voltage ±0.2%~±0.4%
  3. Load regulation: from 10% to 100% , ±0.4% ~ ±0.6%
  4. Ripple/noise: (20MHz BW): 20MHz 25~35mVp-p
  5. Short circuit: Sustainable, self resumption
  6. Over temperature protection: 150°C
  7. Switch frequency: 100% load efficiency, input range 280KHz 330KHz 450KHz
  8. Output current limit: 2000mA
  9. Quiescent current: positive output 5 mA~8 mA
  10. Temperature coefficient: -40°C~+85°C 0.02°C
  11. Maximum capacitive loading: 1000UF
  12. Ripple and noise test method adopts parallel test

General Characteristics:

  1. Operating temperature: -40 ~ +85°C
  2. Operating shell temperature: 100°C
  3. Storage temperature: -40°C ~ +125°C
  4. Pin welding resistance temperature: 1.5mm between welding shot and shell edge , 10s 300°C
  5. Cooling method: Free Air Convection
  6. Shell material: High flame retardant heat resistant plastic (UL94-V0)
  7. Storage humidity: 95%
  8. MTBF: 200,000 h

Instruction:

Wide Input Voltage 4.75VDC-32VDC, transfer to regulated output voltage with the accuracy ±0.5%,±1% or ±2%.
No isolation between input and output



Application:

Battery with long time standby ,handheld device with battery, portable equipment, Automotive equipment, ship-borne equipment etc.


Output current: 500mA, 1000mA, 2000mA, 4000mA Max


Shell: Plastic shell package



DC DC Converter Switching Regulator Board Mount 5VDC Output 12VDC Input 2.5W

Product Data:

ModelInput voltage (V)Output voltage (Vo±2% )Load Current (A)EfficiencySizeWeight (g)
H78S5-0.56.5~3250.5>80% 11.6*10.0*7.55
3.6

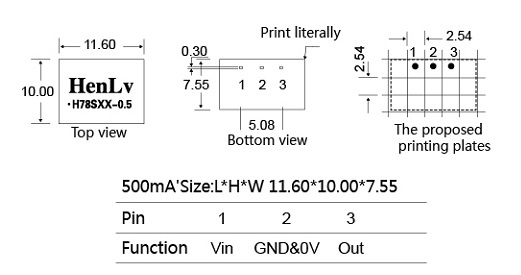

PIN Arrangement:


This Series H78SXX-X Output Current Up to 4A Max. (0.5A, 1A, 2A, 4A Standard Model)

ModelInput voltage (V)Output voltage Load CurrentEfficiencySizeWeight (g)
(Vo±2% )(A)
H78S3.3-0.54.75-283.30.5 >78%11.6*10.0*7.553.6
H78S3.3-1.01.0 >80%11.5*8.9*17.54
H78S3.3-2.02.0 >91%11.5*8.9*17.54
H78S05-0.56.5-3250.5 >80%11.6*10.0*7.553.6
H78S05-1.01.0 >82%11.5*8.9*17.54
H78S05-2.02.0 >91%11.5*8.9*17.54
H78S6.5-0.59.0-326.50.5 >81%11.6*10.0*7.553.6
H78S6.5-1.01.0 >83%11.5*8.9*17.54
H78S6.5-2.02.0 >91%11.5*8.9*17.54
H78S09-0.512-3290.5 >84%11.6*10.0*7.553.6
H78S09-1.01.0 >86%11.5*8.9*17.54
H78S09-1.02.0 >91%11.5*8.9*17.54
H78S12-0.516-32120.5 >80%11.6*10.0*7.553.6
H78S12-1.01.0 >87%11.5*8.9*17.54
H78S12-1.02.0 >91%11.5*8.9*17.54

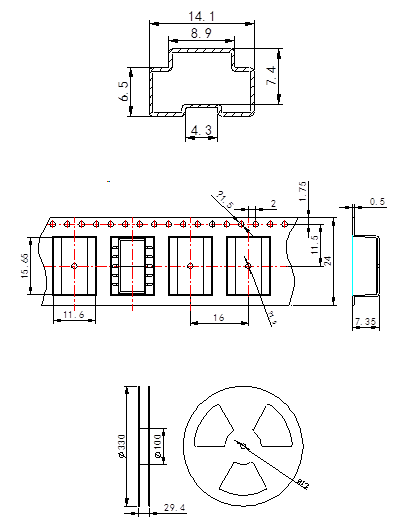

Packaging & Shipping

Package Size:

Product Size (mm) Shell MaterialNet Weight (g)Pieces(1/Box) boxes Size(CM)
Medium  boxes
25.5*11*10.5
Small  boxes
24*8.3*4.7
H78Plastic3.620PCS240PCS/

The package for this series is static free packaging tube for electronic products

Shipping:

Air (Express) or Sea transportation according to your request.



Delivery:

Normally in 7-15 business days




Company Information

HenLv Power Shanghai Technology Co., Ltd. is a professional manufacturer of DC/DC and AC/DC converters and other types of Power Modules, on industrial and military grade.



Certificates passed are ISO 9001:2008, CE and RoHS. As a member of China Power Supply Society, our product quality is in the leading position in this field.



Factory, Henlv Power Ningbo Technology Co., Ltd., is located in Ningbo Economic & Technical Development Zone, Zhejiang Province.



Certificates:




Ningbo Factory:

.jpg

Our Services

Two Years Warranty for products

Reasonable Price directly from FACTORY

Fast Response for any question within 24 hours.

Full Technical Support before/after sale.

Customized products available (OEM, ODM)

Wide Range of Standard Products

Sample requested is available.
