DC DC Power amplifier Module, 5V, 12V, 24V, 48V, 110V input, 10 watt power converter

FOB Reference Price:Get Latest Price
US $1-20 / Pieces | 50 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
Henlv
Model Number:
WRDXXS(D)XX-10W
Output Power:
1 - 50W
Output Type:
Single
Size:
50.80*25.40*10.50mm
Weight:
14+10.5g
Input Voltage:
4.5vdc-150vdc
Output Voltage:
3.3-24VDC
Type:
DC/DC Converters
Output Frequency:
200KHz
Output Current:
410-3030mA
Name:
Power amplifier Module
DIP:
5 PINS
Color:
Black
Certificate:
CE ROHS
Warranty:
2 Years
Efficiency:
80%
Supply Ability
Supply Ability:
200000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
carton box
Port
Ningbo

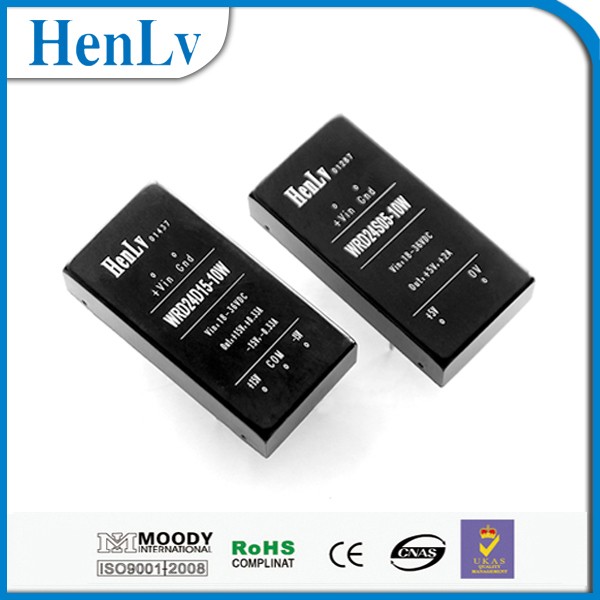

DC DC Power amplifier Module, 5V, 12V, 24V, 48V, 110V input, 10 watt power converterWRDXXS(D)XX-10W.jpg

Output characteristic:

Load efficiency:≤±0.4% 0%-100%load,With the current limit protection, overheating protection,

low voltage and soft start function, low temperature, self-presumption.

Ripple/noise:(20MHz ith width):50m Vp-p Max

Switch frequency: 200KHz

General characteristic:

Source effects: ≤±1%

MTBF: 2000000h

Temperature coefficiency: ≤±0.02% °

Operating temperature:-40°C~+85°C  .

Storage temperature: -40°C~+125°C

Max operating temperature:85°C , relative temperature:10%~90%

Cooling method: natural cooling without increasing the radiator

Instruction:

Width input voltage 1VDC-40VDC transfer the non isolation stbilized any output

voltage value with the accuracy±0.5%. ±1%

Application:

The battery needs long time standby, the battery stand-by power supply handheld devices, portable equipment,

automotive equipment, shipping equipment(eg:train, Liquid crystal display screens ect)

Shell: Metal copper shell package
