Power step down converter dc-dc converter 48v to 24v

FOB Reference Price:Get Latest Price
US $1-15 / Pieces | 10 Piece/Pieces welcome trial order of power step down converter for your test (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
HenLv
Model Number:
WRDxxSxx-10W (2:1)
Output Power:
1 - 50W
Output Type:
Single/Dual
Size:
50.8*25.4*10.5mm
Weight:
21.42G
Input Voltage:
4.5-150VDC
Output Voltage:
3.3-24VDC
Type:
DC/DC Converters
Output Frequency:
150-200KHz
Output Current:
410mA-3030mA
Item name:
power step down converter
Max working temperature:
85℃
Cooling method:
natural cooling without heatsink
Ripple/noise:
20MHz with width: 50mVp-p Max
Relative temperature:
10%~90%
Switch frequency:
150KHz-200KHz
Working temperature:
-40 ℃~ +85℃
Mean Time Between Failures:
2000000h
Storage Temperature:
-40 ℃~ +125℃
Temperature Coefficient:
≤±0.02%℃
Supply Ability
Supply Ability:
50000 Piece/Pieces per Week Henlv factory is located in Ningbo.
Packaging & Delivery
Packaging Details
Carton package for power step down converter , special package for customer is available.
Port
Shanghai

Power Step Down Converter dc-dc converter 48v to 24v

Product Description

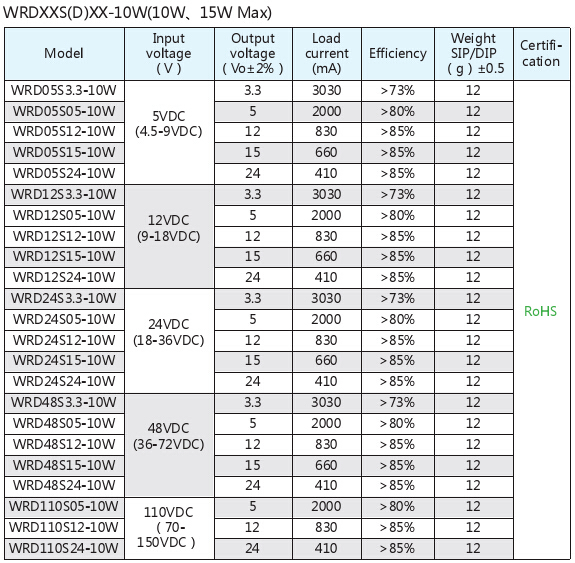

WRD110S24-10W Series

Wide Voltage Regulated DC-DC Voltage Converter 10W

Converter Module WRDXXS(D)XX-10W.jpg



Instruction:
Double 5 pin (DIP) package of the 9VDC-
150VDC input voltage converting to any output
voltage with the accuracy of ±1%.



Application:

A/D and D/A, Railway, the petroleum chemical industry, exchange system communication equipment etc.
Shell: Metal copper



Output characteristic:
1.Load efficiency: ≤±1%  0%-100% load
2.Good anti-disturbance performance, Short circuit protection, Overload protection, Overheating protection,Self-resumption.
3.Ripple/noise 20MHz with width: 50mVp-p Max
4.Switch frequency:150KHz -200KHz

General characteristic:
1.Source effects:  ≤±1% (input voltage condition)
2.Temperature coefficient: ≤±0.02% °C
3.Storage temperature: -40°C~+125°C
4.Cooling method: natural cooling without heat sink
5.Mean Time Between Failures (MTBF): 2000000h
6.Isolation temperature: 1000VDC 0.5mA 1 Minute
7.Max operating temperature:85°C , relative
temperature: 10% ~ 90%

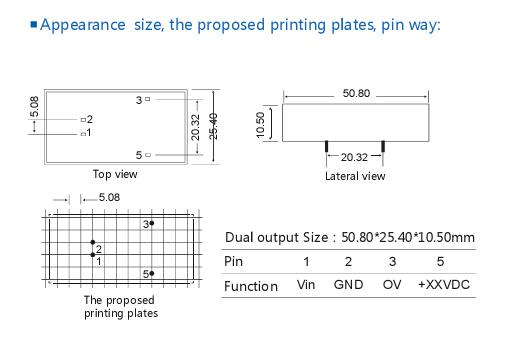

dc converter WRDxxS(D)xx-10W.jpgdc dc converter WRDxxS(D)xx-10W.jpg

Packaging & Shipping

Shipping:

Air (Express) or Sea transportation according to your request.



Payment terms:
T/T in advance,Western Union,Paypal or L/C.



Delivery:

Normally in 7-15 business days.
