DC/DC power buck converter 12VDC to +/-5VDC D12D05T-1W SMD Unregulated

FOB Reference Price:Get Latest Price
US $1-10 / Pieces | 20 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
Henlv
Model Number:
D12D05T-1W
Output Power:
1W
Output Type:
Dual
Size:
15.24*7.50*6.25mm
Weight:
2.6 g
Input Voltage:
+12VDC ±5%
Output Voltage:
±5 VDC ±2%
Type:
DC/DC Converters
Output Frequency:
50-800 KHz
Output Current:
±100 mA Max
Shell:
Plastic Shell
PIN:
SMD Patch Package
Efficiency:
≥72%
Isolation Form:
Isolated between Input and Output
Output Form:
Output Voltage Unregulated
Isolated Voltage:
1000V~1500V
Certificate:
RoHS
Warranty:
2 Years
Supply Ability
Supply Ability:
200000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Color Box, Carton
Port
Ningbo
Lead Time :
7-15 Business Days

  DC/DC power buck converter 12VDC to +/-5VDC D12D05T-1W SMD Unregulated

Product Description

Fixed Voltage Isolation unregulated DC DC power converter (Dual Output, Same Ground)

Output Characteristics:

  1. Load efficiency: ±3% 10%-100% load
  2. Forbidden long term non-load operation
  3. Short time (1 s) short circuit, overload, over temperature protection, and self-resumption
  4. Ripple/noise: 5VDC  50mV Max, 9VDC 60mV Max, 12VDC, 15VDC, 24VDC 100 mV Max
  5. Switch Frequency: 50 KHZ - 800 KHZ
  6. Non-load voltage: 5VDC, 9VDC, (+0.8 VAC Max), 12 VDC, 15VDC, 24VDC (+ 1.5VDC Max)

General Characteristics:

  1. Source effects: input voltage from low to high
  2. Temperature coefficient: ±0.03% ℃
  3. Storage temperature: -45℃~+125
  4. Shell: high inflaming retarding plastic (UL94-V0)
  5.  Cooling method: natural cooling without increasing the radiator
  6. Mean time between failure (MTBF): 200,000 h
  7. Operating temperature: -45℃~+85
  8. Welding pin: 10S 300℃ Max
  9. Max operating temperature: 85℃, relative temperature: 10%~90%

Instruction:

Double patch ( SMD) package, an arbitrary value of input voltage converts to any voltage output, with the accuracy of ± 2% and ± 3%, surface mount technology, reflow soldering process.



Application:

Industrial control and DC Remote Feeding Power System , A/D and D/A, communication

interface converter, monitoring equipment, medical instruments, automatic control

device, burglar alarm, digital circuit, air conditioning/computer controller, etc.



Isolation voltage:1000-1500 VDC 0.5mA 1Minute



Shell: plastic shell package

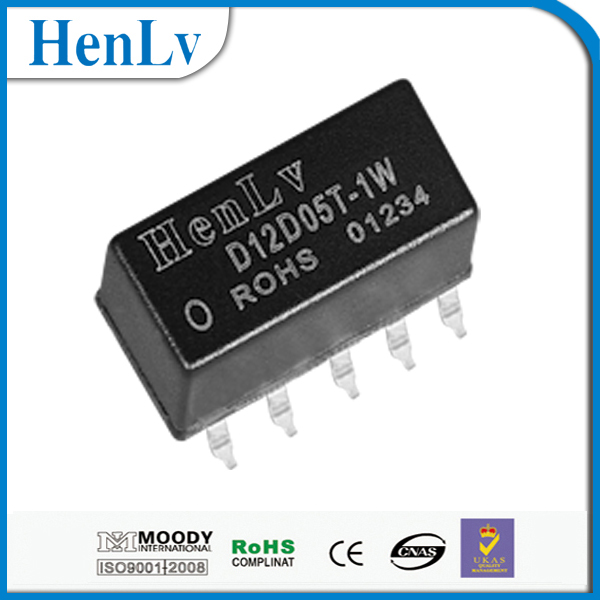

Picture:    DC/DC power buck converter 12VDC to +/-5VDC D12D05T-1W SMD Unregulated


Product Data:

ItemDescriptions
Input VoltageOutput Voltage (±2%) Current (mA)Size (mm)EfficiencyWeight  (g)
D12D05T-1W+12VDC ±5%±5VDC±100 15.24*7.50*6.25mm ≥72%2.60

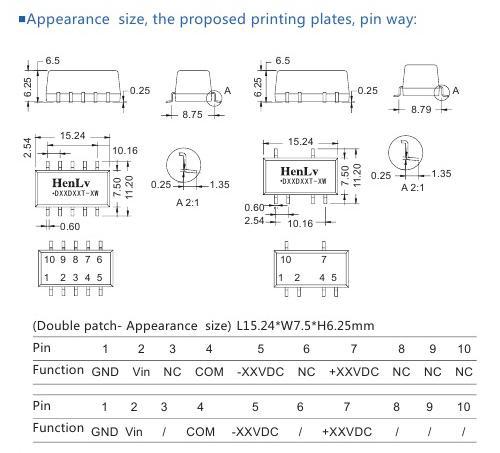

 Pin Arrangement    DC/DC power buck converter 12VDC to +/-5VDC D12D05T-1W SMD Unregulated


 This DXXDXXT-XW Series Output Power Up to 1W (Standard Model 0.5W, 1W)



Model No.Descriptions
Input VoltageOutput Voltage(±2%) Load Current (mA)Size (mm)EfficiencyWeight (g)
D05D3.3T-1W+5VDC ±5%±3.3VDC±15115.24*7.50*6.25≥72%2.6
D05D05T-1W±5VDC±100≥72%
D05D12T-1W±12VDC±41≥75%
D05D15T-1W±15VDC±33≥75%
D05D24T-1W±24VDC±21≥78%
D12D3.3T-1W+12VDC ±5%±3.3VDC±151≥72%
D12D05T-1W±5VDC±100≥72%
D12D12T-1W±12VDC±41≥75%
D12D15T-1W±15VDC±33≥75%
D12D24T-1W±24VDC±21≥78%
D24D3.3T-1W+24VDC ±5%±3.3VDC±151≥72%
D24D05T-1W±5VDC±100≥72%
D24D12T-1W±12VDC±41≥75%
D24D15T-1W±15VDC±33≥75%
D24D24T-1W±24VDC±21≥78%



Packaging & Shipping

Package Size:

Product Size (mm) Shell MaterialNet Weight (g)Pieces (1/Box) boxes Size(CM)
Medium  boxes
25.5*11*10.5
Small  boxes
24*8.3*4.7
15.24*7.50*6.25mm Plastic2.6010PCS/200PCS

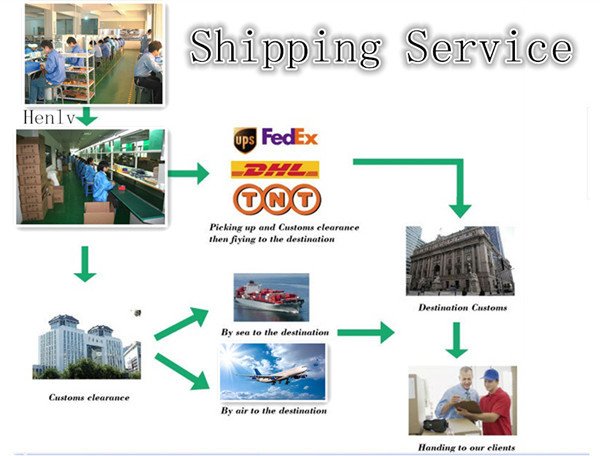

Shipping:


Air (Express) or Sea transportation according to your request.
