low voltage isolated dc dc converter 0.5w 1w 2w for exchange system

FOB Reference Price:Get Latest Price
US $2.5-5 / Pieces | 1 Piece/Pieces Welcome trial order of Henlv power converters. (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
Henlv
Model Number:
DXXSXXT-XW
Output Power:
1 - 50W
Output Type:
Single
Size:
12.7*7.5*6.0mm
Weight:
2.5G
Input Voltage:
5V/9V/12V/24VDC
Output Voltage:
3.3V, 5V,9V, 12V,15V,24V
Type:
DC/DC Converters
Output Frequency:
50-800KHz
Output Current:
41.6~606mA
Item name:
power module
Cooling method:
Natural cooling without heat sink
Shell:
high inflaming retarding plastic (UL94-V0)
Max working temperature:
85℃
Relative temperature:
10%~90%
Welding pin:
≤10S 300℃ Max
Working temperature:
-40 ℃~ +85℃
Mean Time Between Failures:
2000000h
Storage Temperature:
-40 ℃~ +125℃
Temperature Coefficient:
≤±0.03%℃
Supply Ability
Supply Ability:
200000 Piece/Pieces per Month Ningbo factory
Packaging & Delivery
Packaging Details
Carton package for power module , special package for customer is available.
Port
Ningbo
Lead Time :
7-15 working days

low voltage isolated dc dc converter 0.5w 1w 2w for exchange system

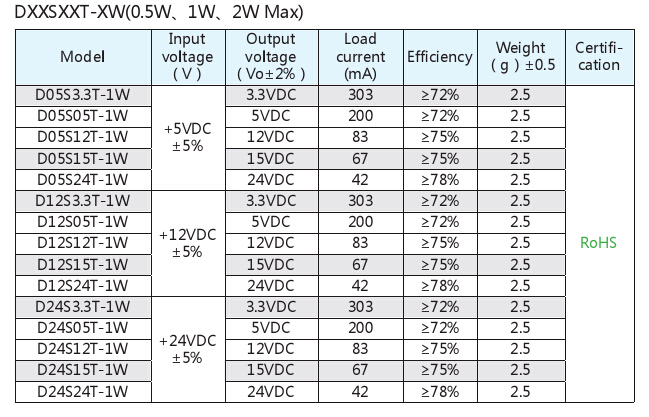

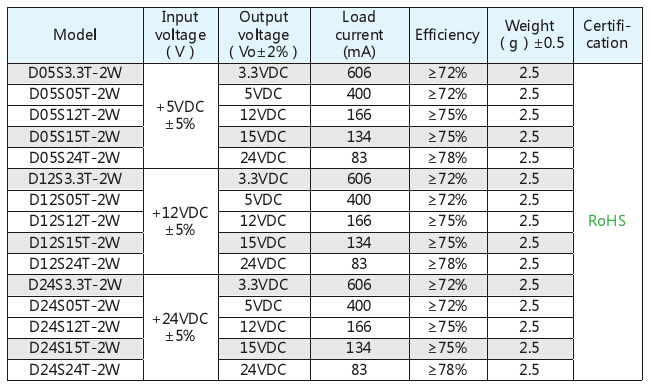

DXXSXXT-XW Series

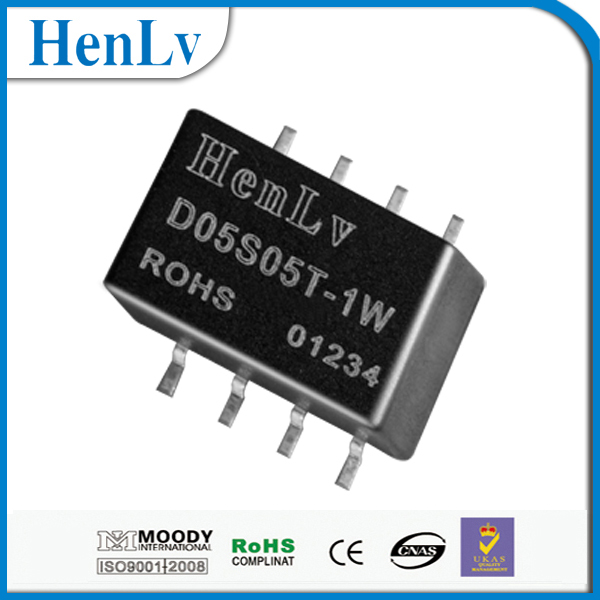

DC DC Power Module DXXSXXT-XW.jpg



Output characteristic:
1.Load efficiency: ≤±3% 10%-100% load
2.Forbidden of non-load operation for a long time!
3.A short period of time (1s) short-circuit, overload, over-temperature protection
circuit, self-resumption
4.Ripple/noise: 5VDC 50mV Max , 9VDC 60mV Max ,12VDC ,15VDC,24VDC 100mV
Max
5.Switch frequency:50KHz -800KHz
6.No-load voltage: 5VDC, 9VDC, (+0.8VDC Max ),12VDC,15VDC,24VDC(+1.5VDC
Max)



General characteristic:
1. Source effects: input voltage from low to high
2.Temperature coefficient: ≤±0.03% °C
3.Storage temperature: -45°C~+125°C
4.Shell: High inflaming retarding plastic (UL94-V0)
5.Cooling method: natural cooling without increasing
the radiator
6.Mean Time Between Failures (MTBF): 2000000h
7.Operating temperature:-45°C~+85°C
8.Welding pin : ≤10S 300°C Max
9.Max operating temperature:85°C , relative
temperature:10%~90%



Instruction

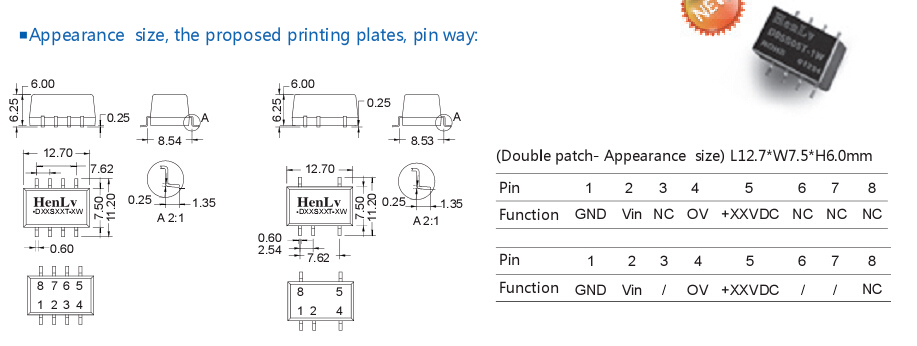

Double patch ( SMD ) package, an arbitrary
value of input voltage converting any voltage
output, accuracy is ± 2% and± 3%, surface mount
technology, reflow soldering process.



Application:
Industrial control and remote DC power supply
system, A/D and D/A, communication interface
converter, monitoring equipment, medical
instruments, automatic control device, anti-theft
alarm, digital circuit, air conditioning computer
controller, etc.
Isolation voltage:1000VDC 0.5mA 1Minute
Shell: shell plastic package

power converter DXXSXXT-XW.jpgdc converter DXXSXXT-XW.jpg

dc dc converter DXXSXXT-XW.jpg



Factory View

Factory-2power converter 4power converter 3enterprise qualification

dc dc converter module.pngpower converter 6

Application

Widely used in Industrial and military,instruments and meters, Industrial Control ,electronic scales, controlled device, IC card watt-hour meter,  automation equipment, air-conditioned computer controller, solar wind power generator,  burglar alarm system, portable rechargeable battery, Rail Transit,Petrochemical Industry, Lamps and lanterns,Medical Treatment, Communication, solar industrial equipment, lighting devices, and consumer electronics, electric meter gsm, electronics & instrumentation, wind power generator,  etc
