1W Miniature Power , 3KVdc High Isolation Voltage, SMD Package DC DC Converter

FOB Reference Price:Get Latest Price
US $1-10 / Pieces | 10 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
HenLv
Model Number:
DXXHISXXT-1W
Output Power:
0.5W-1W
Output Type:
Single
Size:
19.5*6.6*4.5mm
Weight:
13g
Input Voltage:
5-24VDC
Output Voltage:
3.3-24VDC
Type:
DC/DC Converters
Output Frequency:
200hz
Output Current:
0.14A
black:
flame resistant plastic casing
international standard pin:
natural cooling
Warranty:
2 years
Protection:
yes
Name:
dc dc fixed converter
Supply Ability
Supply Ability:
200000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
carton
Port
Ningbo port

1W Miniature Power , 3KVdc High Isolation Voltage, SMD Package DC DC Converter






Output characteristic:  fixed isolation nonregulated

1.Load efficiency: ≤±3% 10%-100% load

2.Forbidden of non-load operation for a long time!

3.A short period of time (1s) short-circuit, overload, over-temperature protection circuit, self-resumption

4.Ripple/noise: 5VDC 50mV Max , 9VDC 60mV Max ,12VDC ,15VDC,24VDC 100mV

Max 5.Switch frequency:50KHz -800KHz

6.No-load voltage: 5VDC, 9VDC, (+0.8VDC  Max ),12VDC,15VDC,24VDC(+1.5VDC Max)



General characteristic:

1. Source effects:  +/-1%(input voltage condition)

2.Temperature coefficient:  ≤±0.02% °C

3.Storage temperature:  -45°C~+125°C

 4.Shell: High inflaming retarding plastic (UL94-V0)

5.Cooling method: natural cooling without increasing the radiator 6.Mean Time Between Failures (MTBF): 2000000h

7.Operating temperature:-45°C~+85°C 8.Welding pin : ≤10S 300°C Max 9.Max operating temperature:85

C , relative temperature:10%~90%



SXXIS(HIS)XX-XW

Instruction:

Single inline or Double inline package (SIP or DIP ), any input voltage value transfer the any input voltage value with the accuracy is ±2% or ±3%

Application:

Especially suitable for the stabilized input voltage, and high accuracy and ripple output voltage of DC voltage:1000VDC 0.5mA 1mINUTE(SXXIS-XW) 3000VDC 0.5mA 1Miute(SXXHISXX-XW)

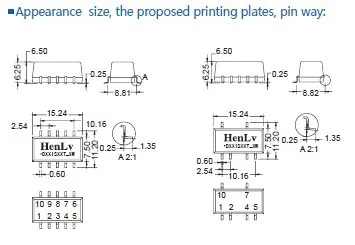

DXXISXXT-1W-3DXXISXXT-1W SERIES1DXXISXXT-1W SERIES2

Factory showcase:



 31

Approved certificate
