Step up voltage 15 volt,12v to 24v dc converter,dc dc power converter

FOB Reference Price:Get Latest Price
US $1-25 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China (Mainland)
Brand Name:
Henlv
Model Number:
WRDxxS(D)xx-30W
Output Power:
1 - 50W
Output Type:
Single
Size:
50.8X50.8X12.7mm
Weight:
25+-0.5g
Input Voltage:
9-150VDC
Output Voltage:
3.3v,5v,9v,12v,15v,24v
Type:
DC/DC Converters
Output Frequency:
150-200KHz
Output Current:
1250-9090mA
black:
metal case
Supply Ability
Supply Ability:
200000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Carton box
Port
Ningbo
Lead Time :
7-15 WORKING DAYS

Step up voltage 15 volt,12v to 24v dc converter,dc dc power converter

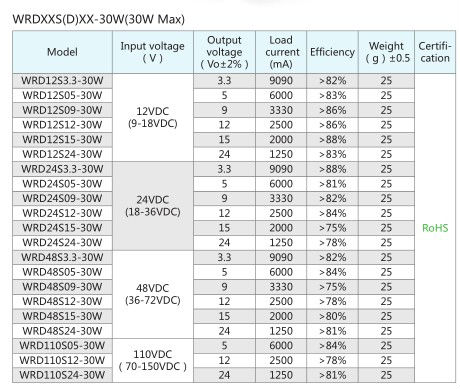

48v_dc_to_12v_dc_converters_12v 30w.jpg

output Characteristic:


1,Load efficiency: ≤±1% 0%-100% load
2,Having the over-circuit,overvoltage(according to your requirement
3,Ripple/noise:(20MHz with width):50mVp-p Max

4 switch frequency:150 KHz-200KHz MTBF:200000h



General characteristics:



1,Source effect:≤±1%(input voltage range)

2, Temperature Coefficient: ≤±0.02% °C

3,Operating temperature: -40+85°C~°C,storage temperature: -40°C~+125°C

4,Cooling method: natural cooling without increasing the radiator

5,Mean Time Between Failures(MTBF):200000h

6,Isolation temperature:1000VDC 0.5Ma 1Minute

7,Max Operating temperature: 85°C,relative temperature:10%-90%



instruction:



9VDC-150VDC(9VDC-18VDC,18VDC-36VDC,36VDC-72VDC,72VDC-150VDC)input voltage, transfer the any output voltage value with the accuracy ±1% ,±2



Application:



A/D and D/A ,Railway communication,display screen,monitoring equipment , petroleum chemical industry,industrial control and distance DC power supply system,



Shell: metal copper shell package
